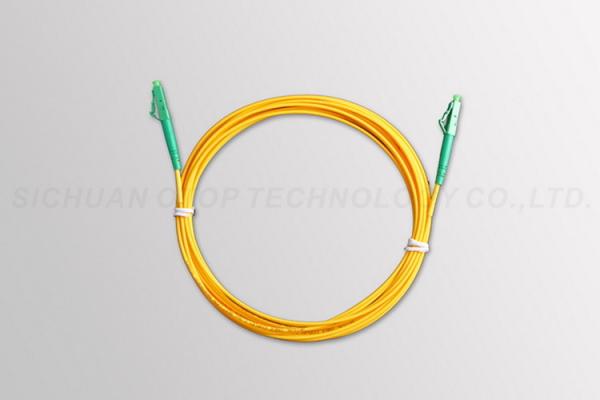

LZSH Lc To Lc Multimode Duplex Fiber Optic Patch Cable 1550nm Wavelength
♦ Feature
Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.
The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.
(1) Ceramic Ferrule; (2) High return loss; (3) Low insertion loss; (4) Good repeatability and and exchangeability (5) Excellent Polished and 100% tested; (6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
♦ Application
- FTTH
- Fiber optic data transmission
- Optical fiber communications system
- Optical fiber access networks(LAN)
- Optical fiber CATV
- Optical fiber test equipment
- Optical fiber data communication
- Optical fiber sensor
Fiber optic patch cord was widely used in all kinds of optical network solutions , such as Security , WAN, LAN, CATV, FTTH, Test Equipment.
♦ Specification
| Parameters |
Standard Fiber Cable Assemblies |
| Fiber Type |
SM(G.652/G.657A) |
MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials |
LSZH/OFNR/PVC |
| Connector Type |
SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000 |
| Ferrule Materials |
Ceramic |
| Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
Insertion Losss(dB)
TIA/EIA-455-107 |
≤ 0.25dB
(PC/UPC/APC) |
≤ 0.3dB
(PC/UPC) |
Return Loss(dB)
TIA/EIA-455-107 |
≥50dB(PC/UPC)
≥60dB(APC) |
≥40dB(PC/UPC) |
| Exchangeability |
≤ 0.2dB |
| Cable Assemblies |
Pigtail/Simplex/Duplex/Fan-out Patchcord |
| Operating Temperature (° C) |
-10~ + 70 |
| Storage Temperature (° C) |
-40 ~ +85 |
| Package |
1unit/bag |
| *All values specified are with connectors. |
♦ Packing
- Plastic bag
